Titreşimli diskli öğütücü RS 300 Analytical fineness for large sample volumes

Fiyat talebi
Veri Sayfası

Dil

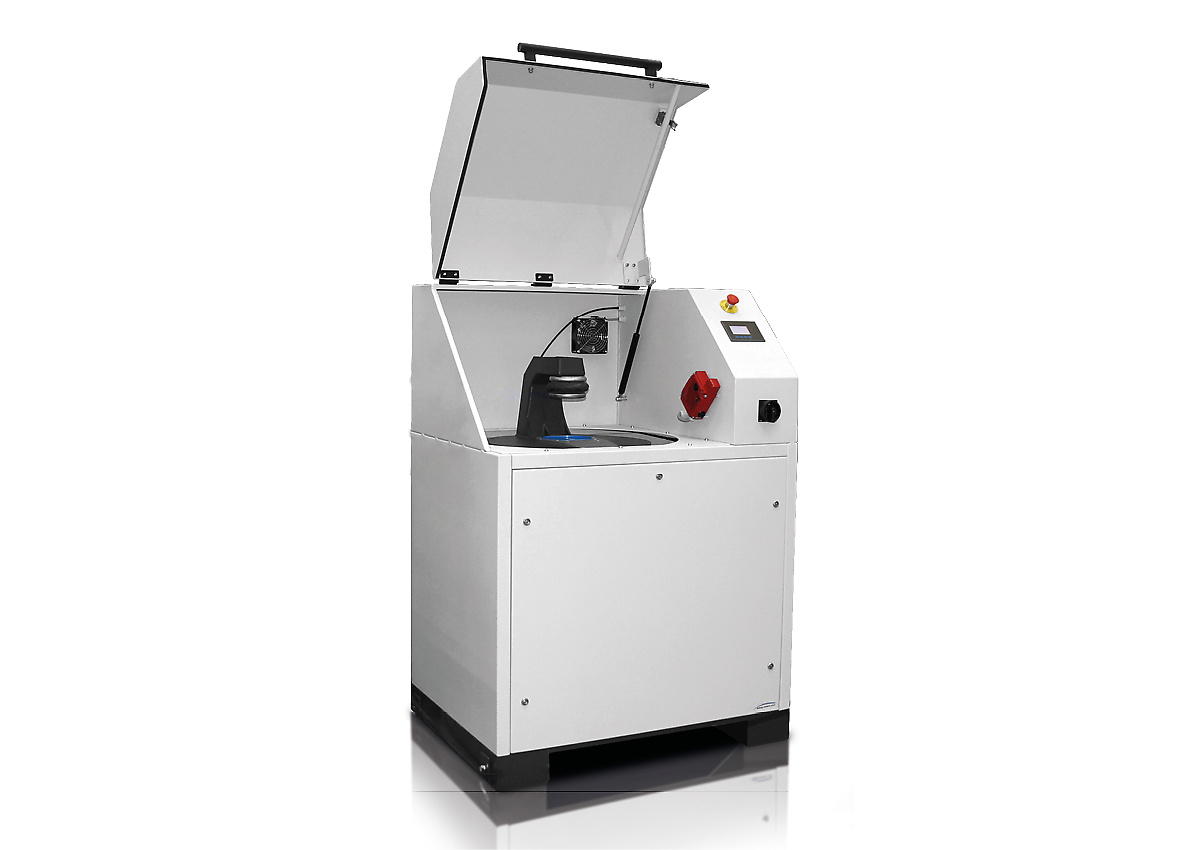

No grinder can beat the speed of a Vibratory Disc Mill when it comes to preparing samples for spectral analyses. RETSCH’s Vibratory Disc Mill RS 300 is suitable for rapid, loss-free and reproducible grinding of medium-hard, brittle and fibrous materials.

Thanks to the robust universal drive shaft, which sets the grinding jar into a 3D motion, the RS 300 accepts grinding set weights of up to 30 kg. The closed grinding system guarantees complete processing of the sample.

Grinding sets are available in a variety of sizes and materials, allowing for easy adaptation to application requirements.

Reproducible & Safe

  • Reproducible results and homogeneous samples thanks to universal drive shaft
    (3D vibration of grinding sets)
  • Auto-reverse function (left/right rotation)
  • Programmable interval function (start/ stop automatic)
  • Grinding jar volumes from 100 ml up to 2,000 ml
  • Pneumatic grinding-jar clamping (with air-pressure) for convenient and safe handling
  • Additional safety feature: Mill only starts when the pneumatic pressure is correct
  • Optional AutoLifter for ergonomic lifting of heavy grinding sets
Titreşimli diskli öğütücü RS 300

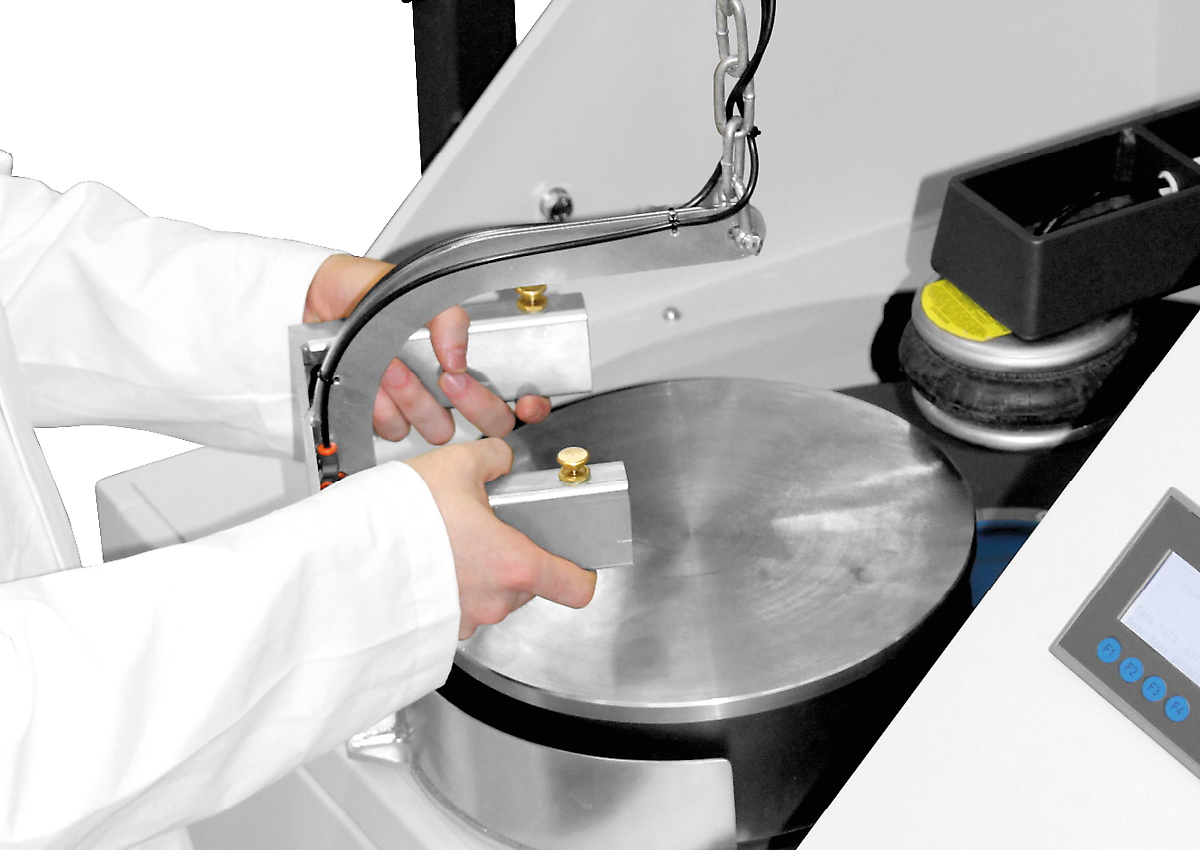

Operation and handling of the RS 300 and its grinding sets is convenient and ergonomic. The AutoLifter is an optional accessory which greatly facilitates ergonomic lowering and lifting of the high-capacity grinding sets. It is simply placed around the grinding set and activated by pushing a button.

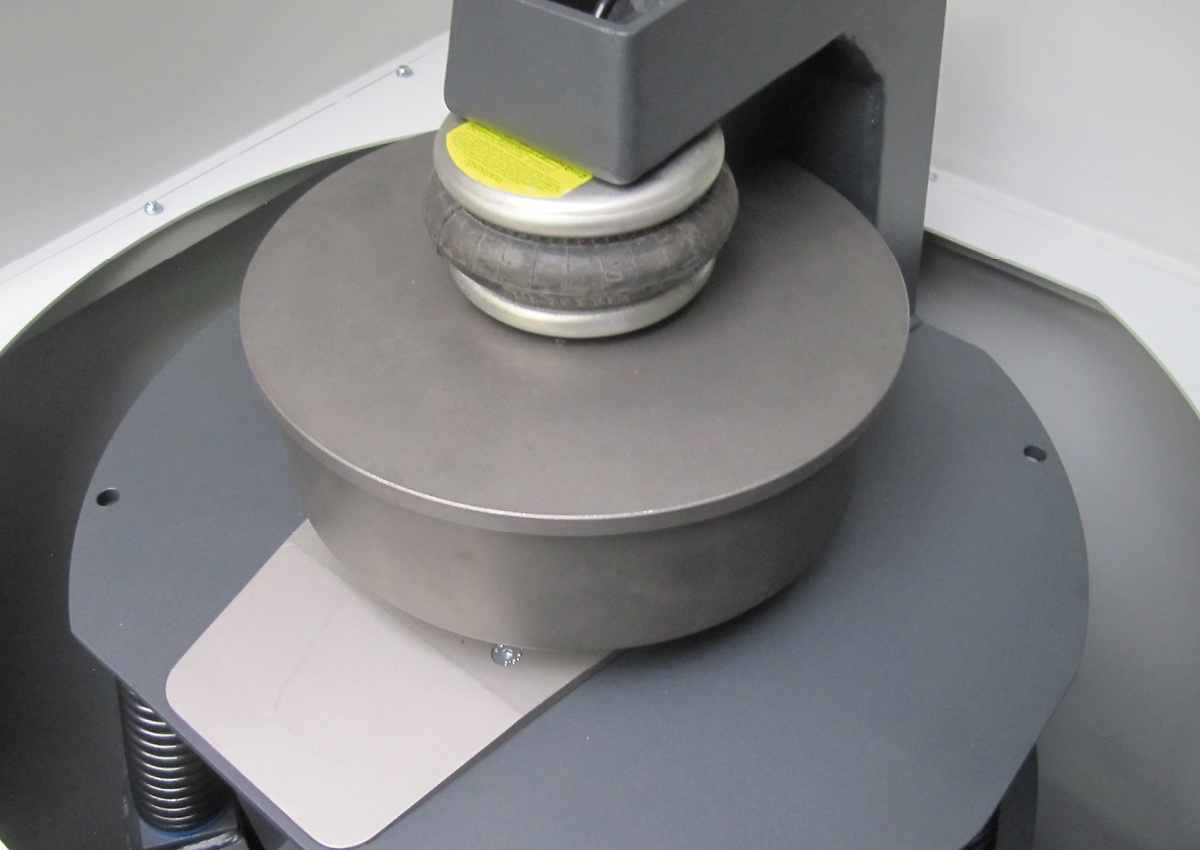

The pneumatic clamping device allows for convenient and safe fastening of the jar. The mill only starts if the pneumatic pressure is correct and the device lifts automatically when the grinding process stops.

The grinding parameters are entered using a keypad. While the programmable interval function helps to improve grinding results, the autoreverse function reduces caking effects inside the grinding jar.

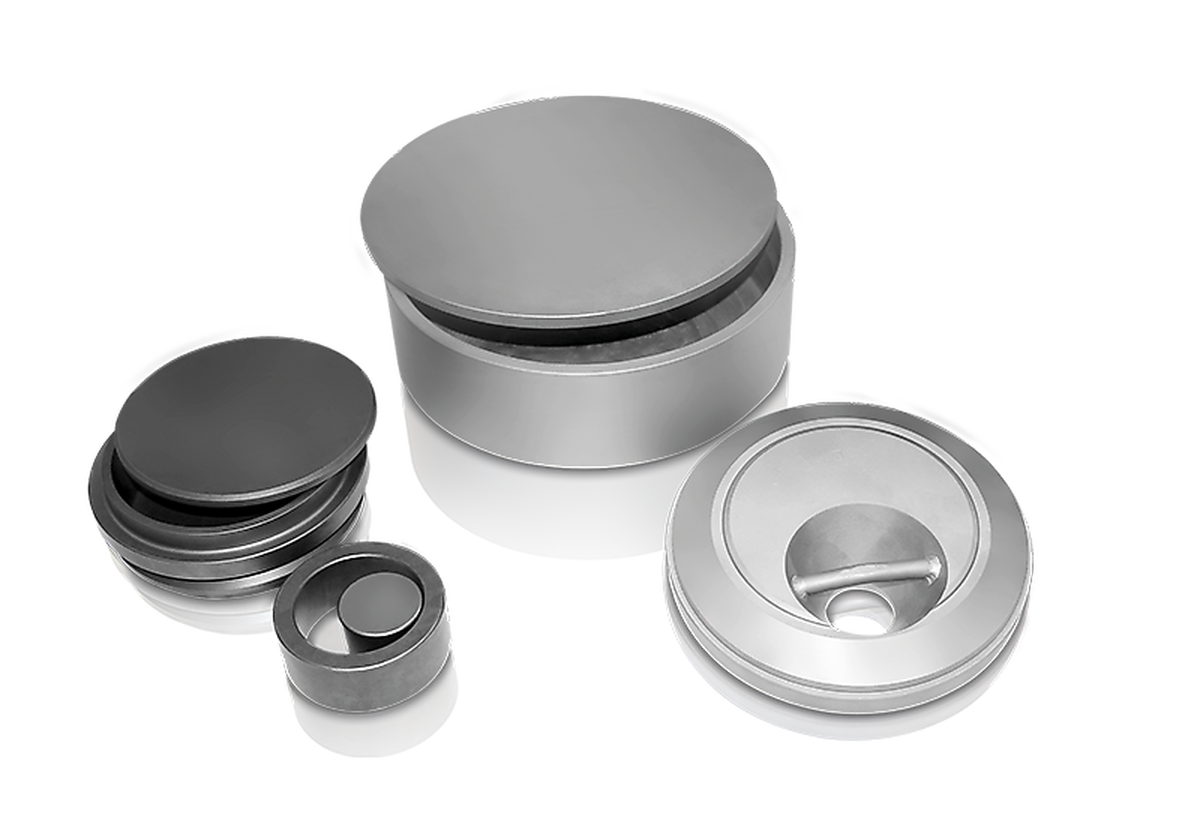

Titreşimli diskli öğütücü RS 300 High-quality grinding sets

Thanks to a variety of sizes and materials of the grinding sets, the RS 300 is suitable for a wide range of applications. The mill accommodates batch sizes from 35 ml to 2000 ml and material feed sizes up to 20 mm.

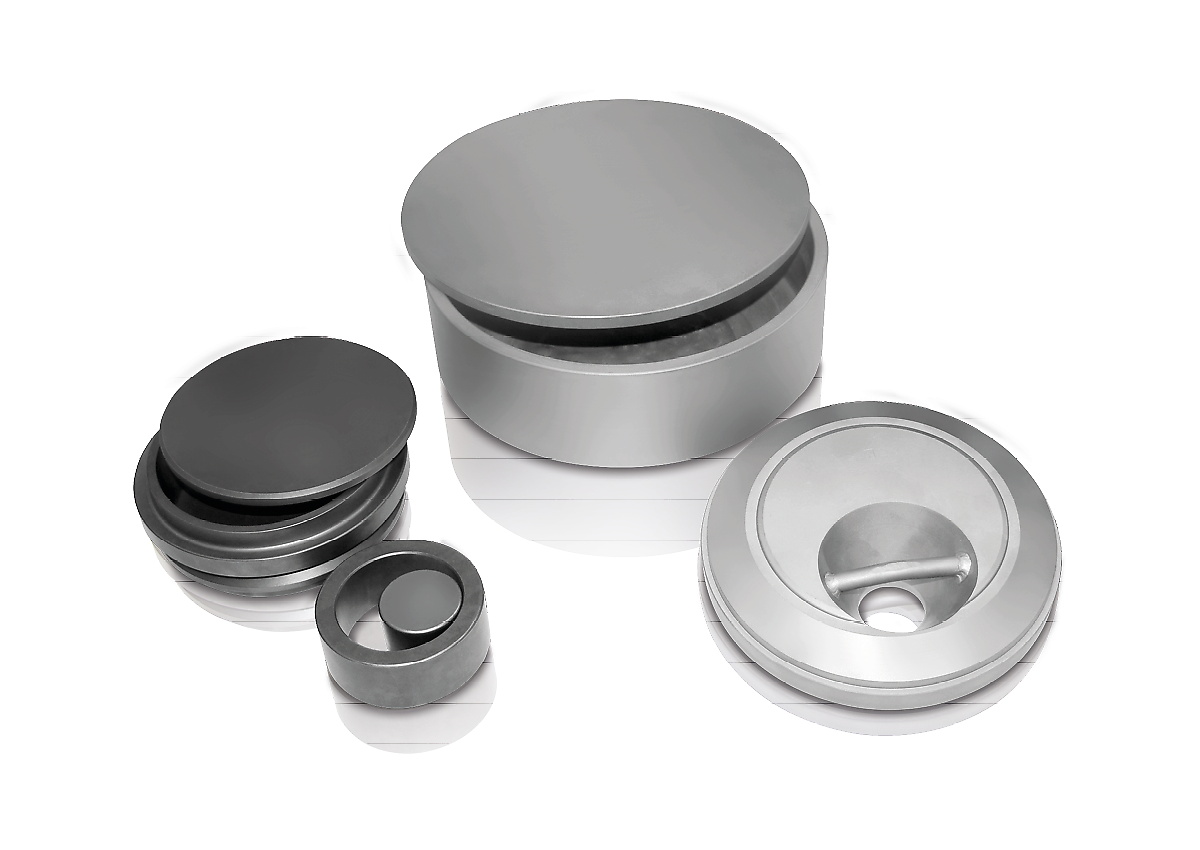

A grinding set for the vibratory disc mill consists of a grinding jar with cover and a grinding disc. The 400 ml grinding set also contains a grinding ring, the 300 ml grinding sets has two additional grinding rings.

The grinding sets are characterized by the following features:

  • Safe, non-slip attachment with anti-twist lock on cover and base
  • Gap between dish and cover edge for easy opening
  • Optimum sealing with O-ring (ideal for wet grinding)
  • Clear grinding set identification (article number, material and volume)
  • The disc of the 800 ml, 1000 ml and 2000 ml grinding sets has an opening which supports perfect mixing of large sample quantities
High-quality grinding sets

Titreşimli diskli öğütücü RS 300 Tipik Örnek Malzemeler

RETSCH’s Vibratory Disc Mills rapidly pulverize materials such as cement, cement clinker, ceramics, coal, coke, concrete, corundum, glass, metal oxides, minerals, ores, silicate, slag, soil, etc.

 Cüruf

 Cüruf

 Elektronik hurda

 Elektronik hurda

iridium

iridium

dolomite

dolomite

Örnek hazırlama göreviniz için en iyi çözümü bulmak için uygulama veri tabanımızı ziyaret ediniz

Titreşimli diskli öğütücü RS 300 Teknik Veri

Titreşimli diskli öğütücü RS 300 Fonksiyon prensibi

Titreşimli diskli değirmen, darbe ve sürtünme ile ufalanır. Taşlama seti, pnömatik bir hızlı sıkıştırma cihazı ile titreşim plakasına sıkıca tutturulmuştur. Öğütme setli plaka 3 boyutlu titreşimlere maruz kalır.

Numune, çanaktaki öğütme halkalarına etki eden merkezkaç kuvvetleri tarafından üretilen aşırı basınç, darbe ve sürtünme ile ezilir. Titreşimler, frekans kontrollü 2,2 kW 3 fazlı bir motor tarafından üretilir.

Teknik modifikasyon ve hatalara bağlı olarak
