The BB 50 is the smallest model of the RETSCH jaw crusher series and has been specially designed for sample preparation in the laboratory. The compact machine fits on any laboratory bench and offers safe and convenient handling.
The RETSCH jaw crusher series is available in 8 different sizes. Throughput and final fineness depend on the crusher type, selected gap width and breaking properties of the sample material.
Robust design, simple handling and cleaning are the features of the RETSCH jaw crusher models. Small amounts of sample are processed batchwise; for larger amounts the crushers can be operated continuously.
Ürün Videosu
Small, powerful benchtop unit
The BB 50 is designed for efficient and convenient size reduction. The variable speed can be set between 550 and 950 min-1 to adapt the crushing process to sample requirements. The possibility to reverse the rotating direction is helpful if too much sample material has been fed to the crusher causing it to block. The simple push of a button restarts the process. Due to permanently lubricated bearings and its solid design, the BB 50 jaw crusher is virtually maintenance-free.

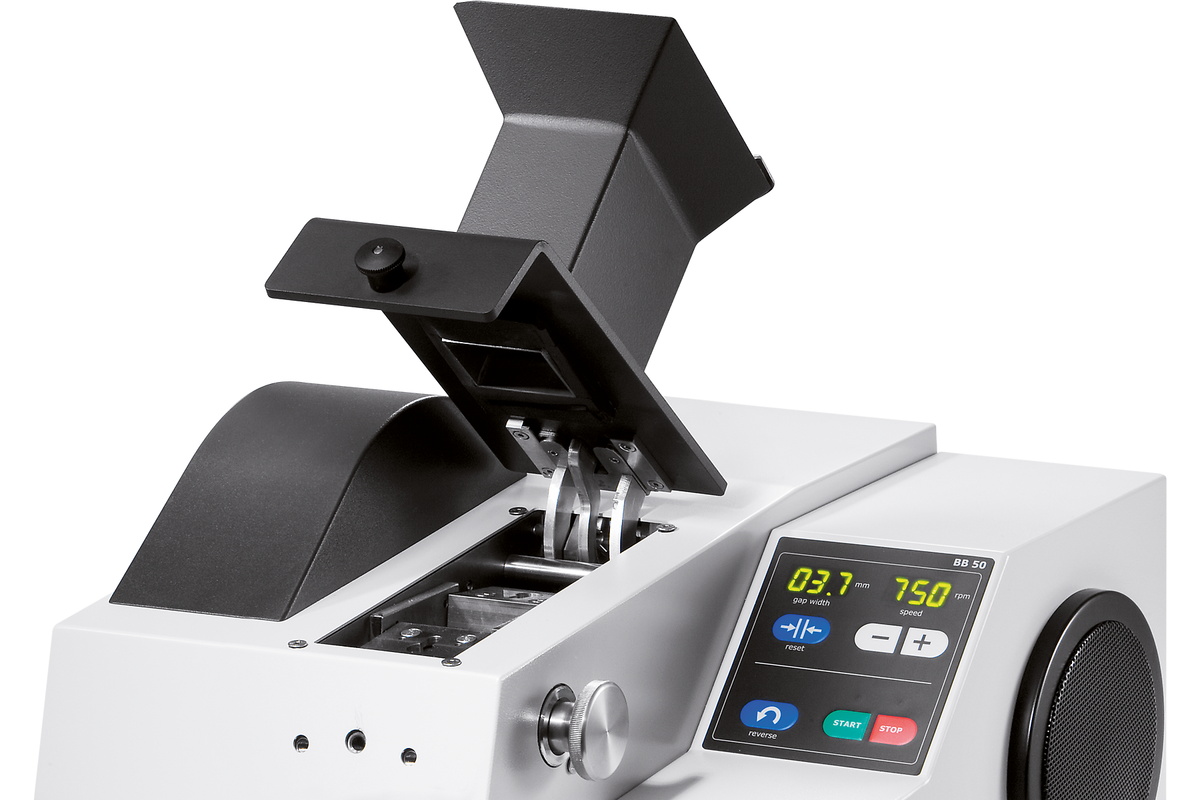

Fold-back hopper can be removed for easy access

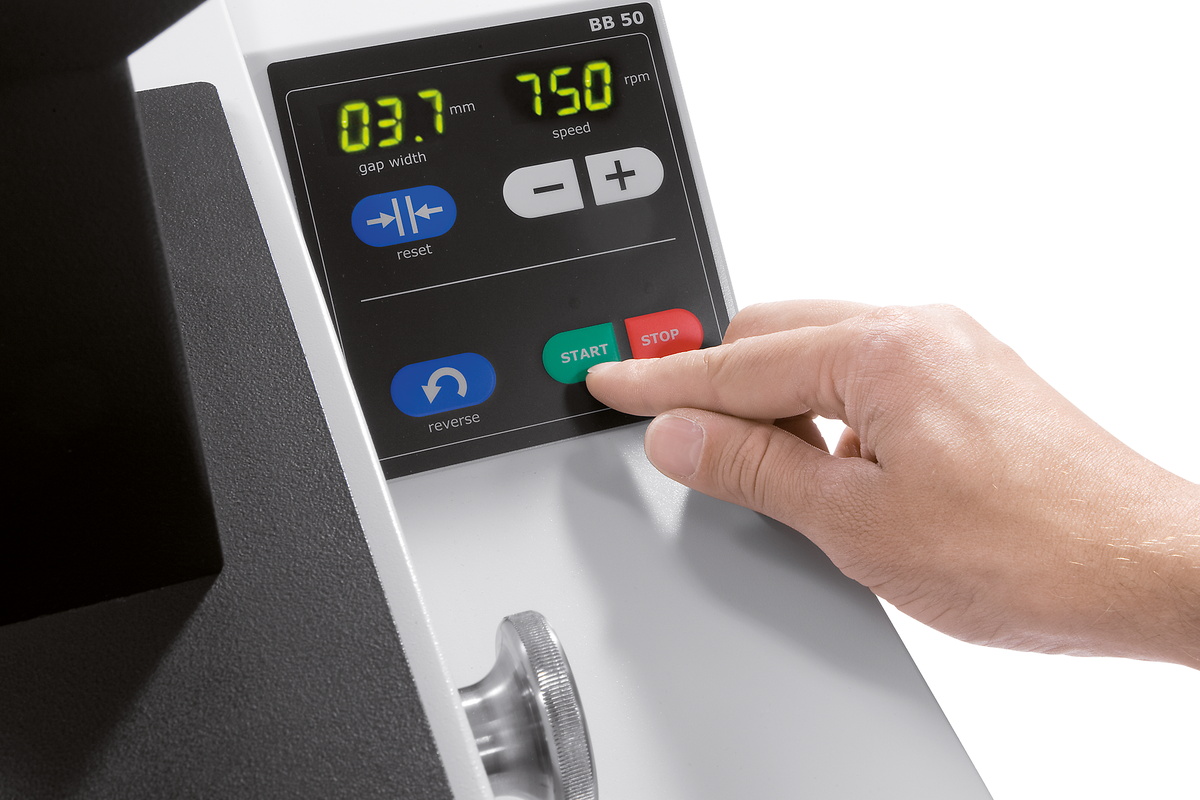

Digital speed setting and display of gap width

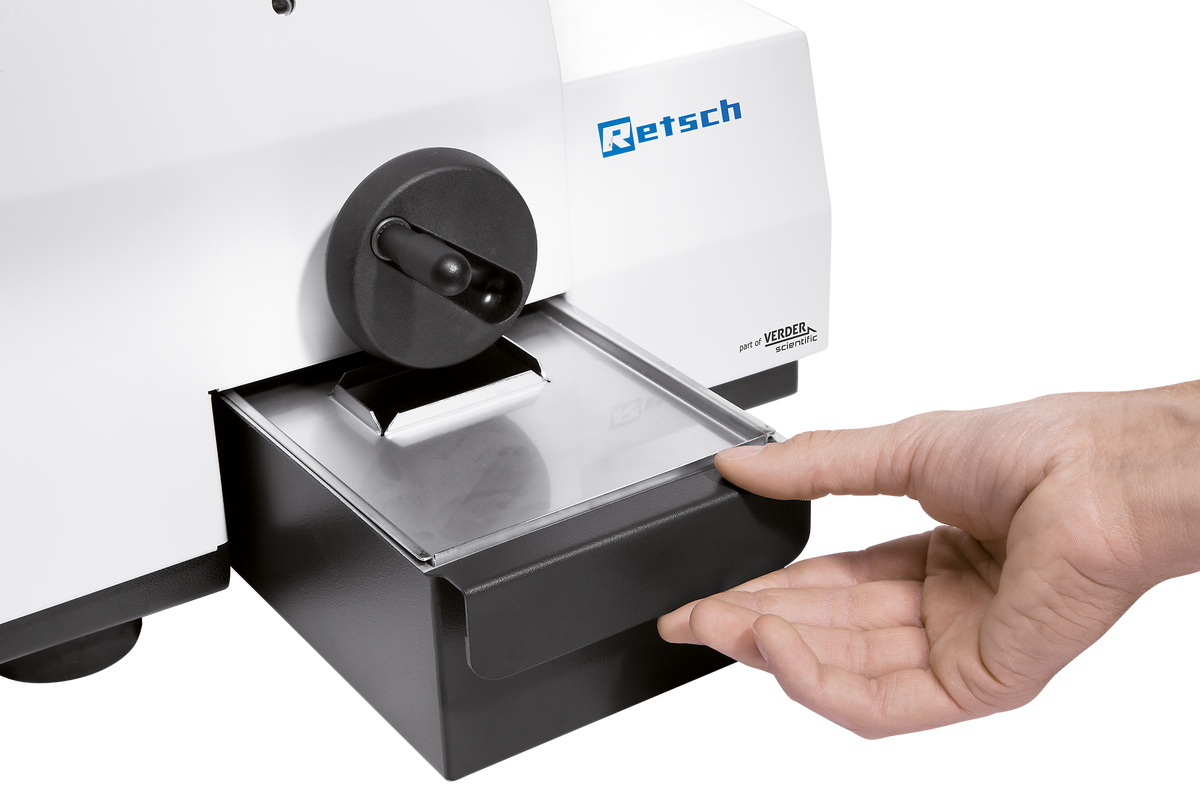

Large collection receptacle (3 l) with optional lid
An advantage of the jaw crusher BB 50 is the so-called zero point adjustment. Sooner or later, the breaking jaws will show signs of wear which will affect the reproducibility of the size reduction process. This effect can be compensated by adjusting the zero point. A sign in the display indicates if the jaws need to be replaced altogether, thus helping to avoid damages to the crusher.
Working with the BB 50 jaw crusher is easy and safe. The large, clearly structured operating panel allows for digital display of parameters such as gap width and speed. The sample material is conveniently fed to the crusher via the large hopper equipped with splash-back protection.
For easy cleaning the fold-back hopper and crusher arm can be removed without using tools. The user can also exchange the breaking jaws if the crusher needs to be converted for different applications.

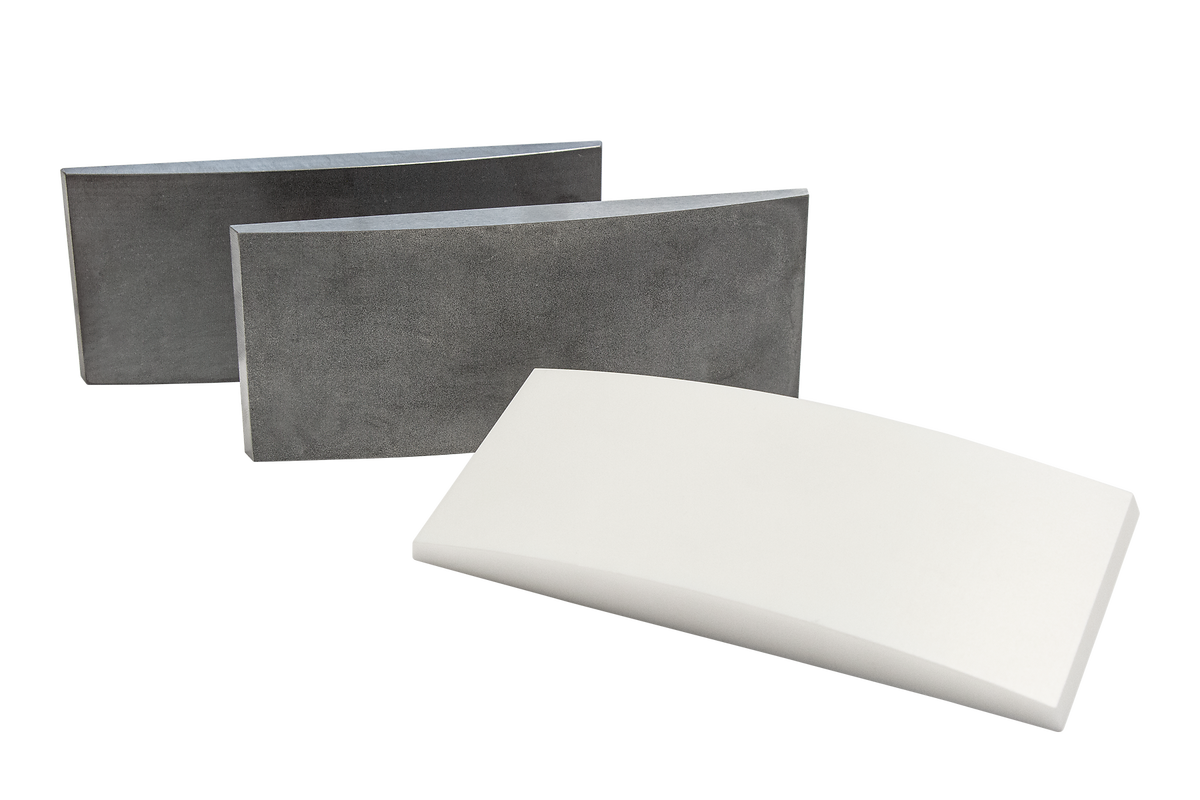

Breaking jaws and wearing plates are available in five different materials to be selected depending on the sample and the analysis to be carried out:

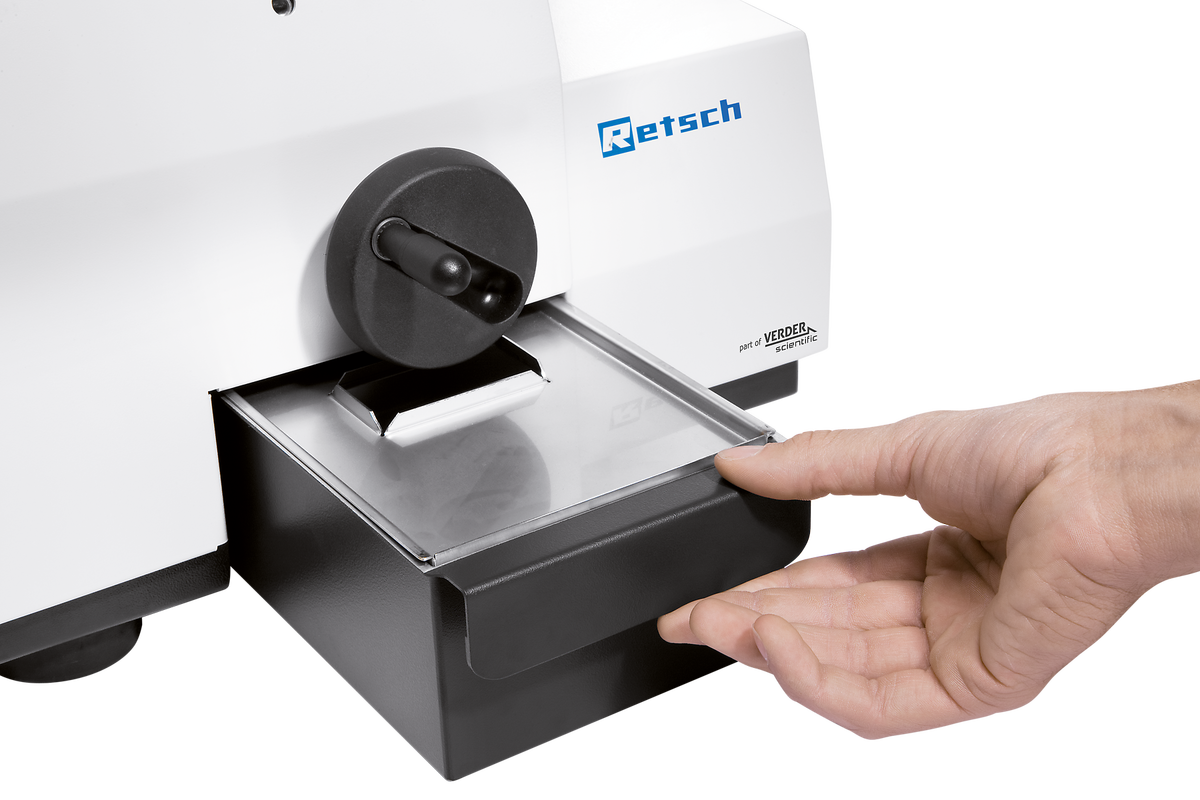

The optional lid for the collecting receptacle of the jaw crusher ensures that the fine residues from previous samples fall on the lid and not into the receptacle which helps to avoid cross contaminations.
RETSCH’s powerful jaw crushers are ideally suited for preliminary crushing of construction materials, ores, granite, oxide ceramics, quartz, slag, silicon, coal, tungsten alloys, cement clinker, etc.
Beton
jade
Cam
Kömür
Örnek hazırlama göreviniz için en iyi çözümü bulmak için uygulama veri tabanımızı ziyaret ediniz
| Uygulamalar | kaba ve ön öğütme |
| Uygulama alanı | biyoloji, cam / seramik, ilaç / eczacılık, inşaat malzemeleri, jeoloji / metalurji, tarım |
| Besleme malzemesi | sert, kırılgan, orta sert, sert |
| Boyut küçültme prensibi | basınç |
| Malzeme giriş büyüklüğü | < 40 mm |
| Çıkış büyüklüğü | < 0.5 mm |
| Çıktı* | 3 l/batch |
| Öğütücü elemanların malzemesi | mangan çelik, paslanmaz çelik, tungsten ... |
| Çene genişliği | 45 x 59 mm |
| Çene aralığı genişliği ayarı | 0,1 mmlik artışlarla 0 - 11 mm |
| Çene aralığı genişliği göstergesi | dijital |
| Sıfır noktası ayarı | evet |
| Ters dönüş yönü | evet |
| Askılı besleme hunisi | evet |
| Toz çekme ünitesi | halihazırda toz geçirmez |
| Merkezi yağlama | üretici tarafından ömür boyu yağlama |
| Üretim hattı versiyonu | üretim hattını kullanımı olasılığı |
| Kollektör kapasitesi | 3 l |
| Tahrik | frekans konvertörlü 3-faz motor |
| Motor gücü | 1.1 kW |
| Elektriksel veriler | farklı voltajlar |
| Güç bağlantısı | 1-faz |
| Koruma kodu | IP 20 / IP 00 havalandırma kanatlarında... |
| G x Y x D kapalı | 420 x 460 x 560 mm |
| Net ağırlık | ~ 79 kg |
| Standartlar | CE |
The Jaw Crusher BB 50 is a robust and powerful forced-feed crusher. The feed material passes through the no-rebound hopper and enters the crushing chamber.
Size reduction in the Jaw Crusher takes place in the wedgeshaped area between the fixed crushing arm and one moved by an eccentric drive shaft. The elliptical motion crushes the sample which then falls under gravity.
As soon as the sample is smaller than the discharge gap width, it falls into a removable collector. The continuous gap width setting with digital display ensure optimal size reduction in accordance with the set gap width value.
