The TM 300 Drum Mill is utilized for preparing granules and powders through a grinding process conducted in either dry or wet conditions. This versatile grinder can function as either a Ball or a Rod Mill by employing the corresponding module. To ensure an efficient grinding process, it is essential to use a sufficient number of balls or rods. Depending on the sample material, a final fineness below 20 microns can be achieved.

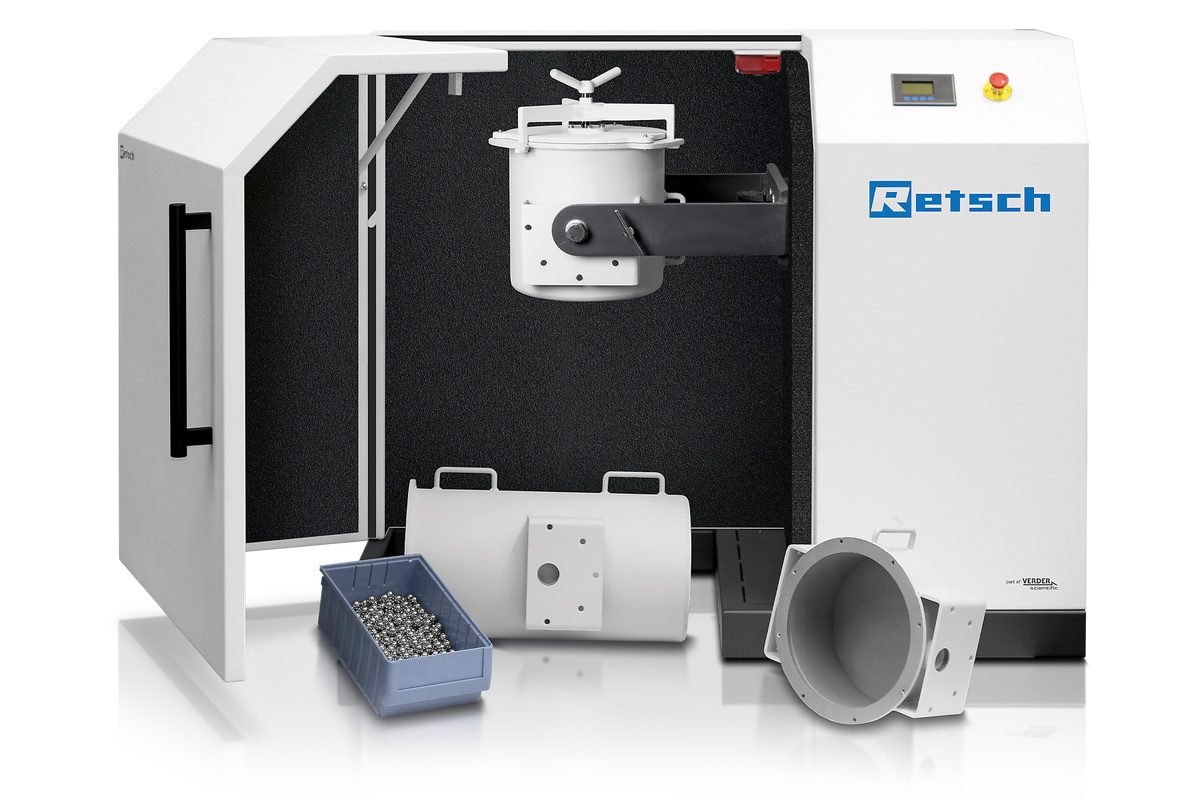

The drum mill comprises a gear motor mounted on a robust steel frame, a set of separation grids, and a sample collector. The TM 300 is designed with a yoke and locking mechanism that facilitates easy access to the sample. Cleaning is made convenient by a quick-release locking mechanism, allowing effortless removal of the drum cover.
The TM 300 accepts sample volumes up to 20 l and is therefore also suited for upscaling processes.
The TM 300 stands out for its user-friendly features. The easy tilt mechanism facilitates the swift and uncomplicated emptying of the grinding jar. The removable sample collector simplifies the sample retrieval process, making it convenient for operators to access their collected materials.
The solid noise-protection hood contributes to a quieter and more comfortable working environment.
The TM 300 is equipped with an emergency switch, providing a quick and reliable means to halt the milling process in case of unforeseen circumstances, underscoring the commitment to user safety.
The redesigned drums and drum covers of the TM 300 feature improved handling, allowing the lid to be secured with just one screw for a perfect seal, even during wet grinding.
Process parameters like grinding time or start/stop are conveniently set via the TM 300's large display interface. Settings include:
Catering to various application needs, the TM 300 offers standard grinding drums ranging from 5 to 43.4 liters. This ensures that the mill is adaptable to a wide spectrum of processing tasks.
An optional separation grid provides convenient separation of balls and sample after the grinding process. It is suitable for grinding balls sized 10, 20 or 30 mm. A connection for dust extraction prevents release of dust.
The grinding jar comes equipped with a gasket, ensuring a secure seal for loss-free milling operations. This feature not only enhances the efficiency of the process but also minimizes the risk of material waste.
5-liter Grinding drum
21.7-liter Grinding drum
Separation grid
While the maximum sample feed size depends on properties like hardness and breaking behaviour, a particle size of approximately 5 mm is ideal for the TM 300. Larger sizes are acceptable but should not exceed 15 mm. For sample lumps which break very easily or for deagglomeration effects, a feed size between 20 and 30 mm is feasible. For such easy-to-process samples, the sample filling level may be increased to 20 l.
If special drums of stainless steel 1.4404 in sizes 21.7 / 10 / 5 l together with grinding balls of steel 1.4404 are employed, it is possible to carry out wet grinding in the TM 300. The total filling volume for wet grinding may exceed the recommended amount for dry grinding. It may be helpful to use a large number of small grinding balls to increase friction.
| Grinding drum | Mass of grinding balls | Grinding ball size (mm) | Number of rods | Optimum sample volume (l) |
| 5 l | 10 kg | <5 | 10 | 20 | 30 | - | 1 - 1.5 |
| 10 l | Buraya kadar 20 kg | <5 | 10 | 20 | 30 | - | 2 - 2.5 |
| 21.4 l | 40 kg | <5 | 10 | 20 | 30 | - | 4 - 5 |
| 43.4 l | - | - | 8 | 9 - 20 |
The user can set the grinding drums in five different positions which are secured by a screw. This ensures easy filling and emptying of the drum but also improves the mixing and grinding process. The largest rod module of 43.4 l cannot be brought into the mixing position due to lack of space.
Filling position
Mixing position

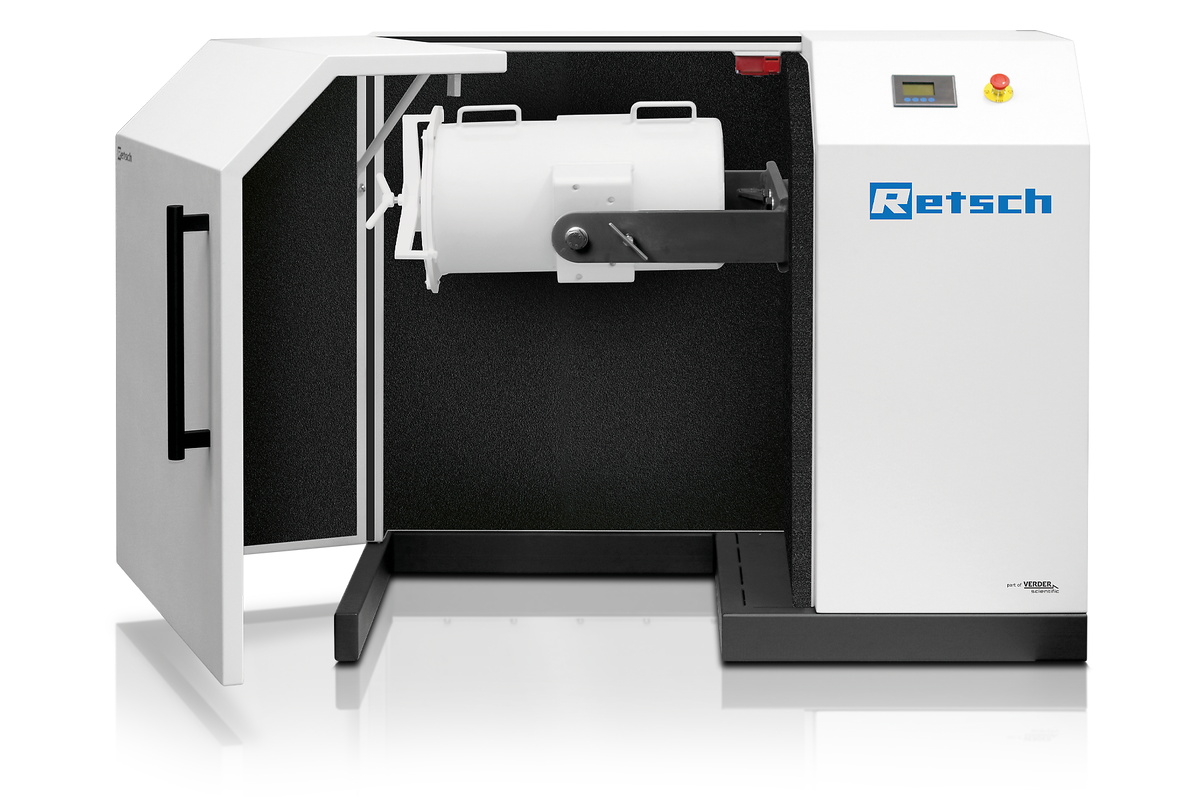

Grinding position
Emptying position
Complete emptying position
Another application area of the TM 300 is Bond Index Testing. The Bond Work Index is used to assess the grinding efficiency and to calculate the necessary grinding power when choosing comminution equipment in the design phase of, for example, a mining plant. Precise determination of BWI is crucial for the accurate design and estimation of costs linked to the comminution process in industries like cement, mining or steel.
Both the Ball Mill and the Rod Mill module can be used for the process. At least 15 to 20 kg sample material is required to simulate a closed grinding circuit.
The Ball Mill Work Index (BWI) is used for the range from 2.1 mm down to 100 µm. The sample needs to be pre-crushed to particle sizes as defined below.
The Rod Mill Work Index (RWI) is used for particle size determination in a size range from 25 mm down to 2.1 mm. The sample needs to be pre-crushed to particle sizes as defined below.

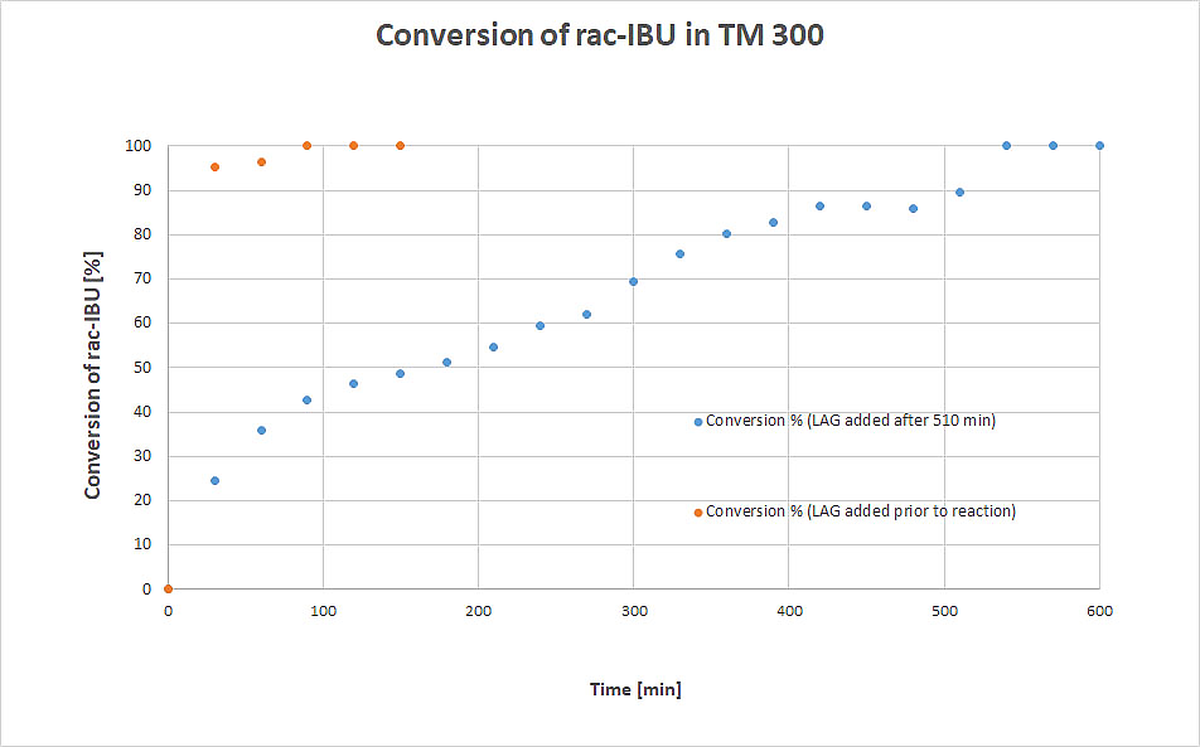

RETSCH tamburlu değirmenler gerçek anlamda çok yönlüdür. Örneğin: aktif karbon, alaşımlar, bentonit, kemikler, karbon fiberleri, katalizörler, selüloz, çimento klinkeri, seramikler, kimyasal ürünler, kil mineralleri, kömür, kok, kompost, beton, elektronik hurda, fiberler, alçıtaşı, cam gibi homojenleştirirler. saç, hidroksil apatit, kaolin, kireç taşı, metal oksitler, mineraller, cevherler, boya ve vernik, kağıt, farmasötik ürünler, pigmentler, bitkiler, polimerler, kuvars, tohumlar, yarı değerli taşlar, kanalizasyon çamuru, cüruf, toprak, doku, tütün, atık, odun vb.
5 l sample

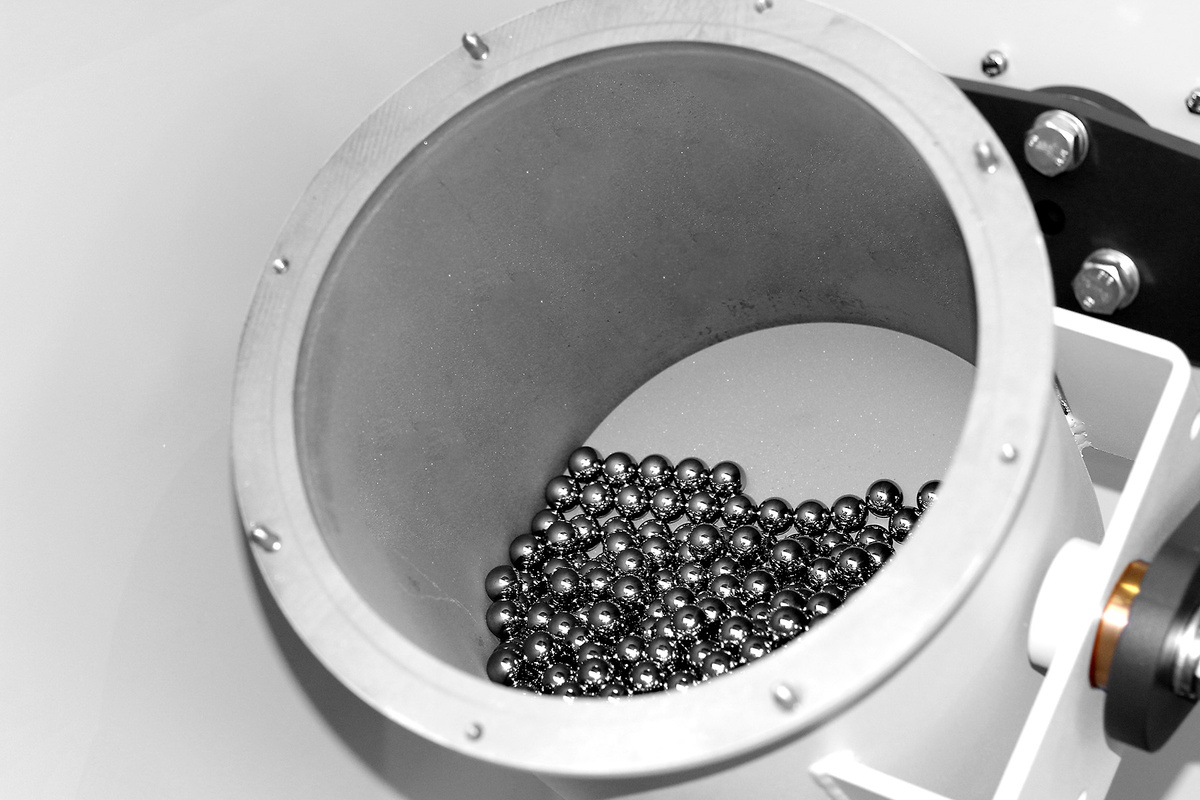

21.7 l ball module
Pre-grinding:
40 kg x 20 mm grinding balls
4 h at 60 rpm
Fine grinding:
40 kg x 10 mm grinding balls
5 h at 60 rpm
4.5 l sample
21.7 l ball module
Pre-grinding:
40 kg x 30 mm grinding balls
3 h at 60 rpm
Fine grinding:
40 kg x 10 mm grinding balls
4 h at 60 rpm
25 kg sample

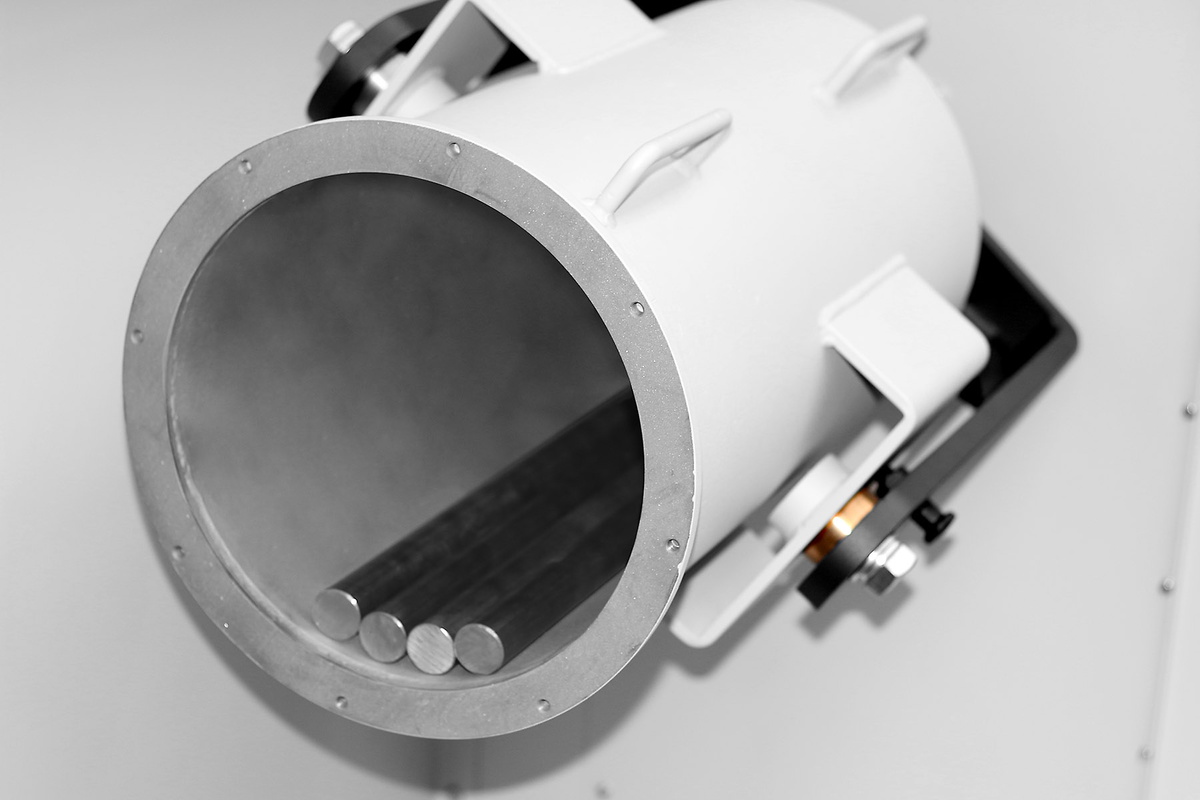

43.4 l rod module
8 grinding rods
1 h at 80 rpm
4.2 l sample
21.7 l ball module
40 kg x 30 mm grinding balls
5 h at 70 rpm
Örnek hazırlama göreviniz için en iyi çözümü bulmak için uygulama veri tabanımızı ziyaret ediniz
| Uygulamalar | pulverizing, mixing used as Bond Index Tester: quantification of grindability of ores and minerals |
| Uygulama alanı | biyoloji, cam / seramik, ilaç / eczacılık, inşaat malzemeleri, jeoloji / metalurji, kimya, mühendislik / elektronik, tarım, çevre / geri dönüşüm |
| Besleme malzemesi | yumuşak, sert, kırılgan, lifli |
| Boyut küçültme prensibi | sürtünme |
| Malzeme giriş büyüklüğü | < 20 mm used as Bond Index Tester: < 3.35 mm with ball module / 12.50 mm with rod module |
| Çıkış büyüklüğü | < 20 µm used as Bond Index Tester: < 100 µm with ball module / 2,100 µm with rod module |
| Parti boyutu / besleme miktarı | minimum 1 l / maximum 20 l used as Bond Index Tester: min. 15 kg with ball module / min. 20 kg with rod module |
| Dönme hızı | 1 - 80 min-1 used as Bond Index Tester: 70 min-1 with ball module / 46 min-1 with rod module |
| Öğütücü istasyon sayısı | 1 |
| Öğütücü elemanların malzemesi | Sertleştirilmiş çelik, stainless steel used as Bond Index Tester: hardened steel |
| Öğütme tamburu boyutları | 5 l / 10 l / 21.7 l / 43.3 l used as Bond Index Tester: 21.7 l with ball module / 43.3 l with rod module |
| Öğütme süresi ayarı | dijital |
| Tahrik | Frekans konvertörlü ile 3 fazlı asenkron motor |
| Motor gücü | 0.75 kW |
| Elektriksel veriler | farklı voltajlar |
| Güç bağlantısı | 1-faz |
| Koruma kodu | IP 41 |
| Güç tüketimi | ~ 1800 VA |
| G x Y x D kapalı | 1500 x 1200 x 700 mm |
| Net ağırlık | ~ 306 kg |
| Standartlar | CE |
Tamburlu bir değirmende, numune (genellikle önceden ezilmiş malzeme) öğütme bilyeleriyle birlikte tamburun içine yerleştirilir ve dış kuvvetlere maruz bırakılır. Bilyalı Değirmen, kuru durumda katı maddenin darbe ve sürtünme ile ince öğütülmesi için kullanılır. Numune ve öğütme bilyelerini içeren tambur, yatay bir eksen etrafında dönmektedir. Daha büyük bilye çapları kullanıldığında parçacıklar daha kolay kırılırken, daha küçük çaplar önemli ölçüde daha yüksek bir nihai inceliğe yol açar.
The ball and the rod mill basically have the same concept comprising either a 12''x12'' jar with grinding balls or a 12''x24'' jar with grinding rods.
The jar is attached to a rotating yoke which is driven by a motor and can be placed in three different positions: Upwards for loading, horizontal for grinding, downwards for discharging.
To carry out the Bond Index test the pre-defined number of grinding balls or grinding rods is required. The electronic control integrated in the drive is equipped with an overload protection and permits and controls different speeds.
During the grinding process the difference in speeds between the balls / rods and grinding jar produces an interaction between frictional and impact forces, which releases the required comminution energy. The interplay between these forces produces a very effective degree of size reduction.
